Self-Hosted Container Management with Komodo: Your Own Deployment Platform in Docker

#What is Komodo

Komodo is an open-source, self-hosted platform for managing servers, containers, and deployments. Think of it as your personal Portainer alternative with built-in CI/CD capabilities. Komodo follows a Core/Periphery architecture where a central Core instance manages multiple Periphery agents running on your servers.

Unlike simple container management tools, Komodo provides a complete workflow from code to deployment. It can monitor your Git repositories, build Docker images, push them to registries, and deploy containers across your infrastructure, all from a single dashboard.

#Key Features

Komodo offers a comprehensive set of features for homelab infrastructure management:

• Server Management: Monitor and manage multiple servers from a single dashboard with real-time stats
• Stack Deployments: Deploy Docker Compose stacks with version control
• Image Building: Build Docker images from repositories with dedicated Builder instances
• Container Management: Start, stop, restart, and monitor containers across all connected servers
• Git Integration: Connect to repositories on GitHub, GitLab, Forgejo, or any Git provider
• Alerting System: Get notified when containers crash, servers go offline, or builds fail
• Resource Monitoring: Track CPU, memory, disk, and network usage across your infrastructure
• Procedure Automation: Create automated workflows for common tasks

#Architecture Overview

Komodo uses a distributed architecture with three main components:

• Core: The central management server that hosts the web UI and API
• Periphery: Lightweight agents that run on each managed server
• Builder: Optional dedicated instances for building Docker images

This separation allows the Core to remain lightweight while offloading heavy tasks like image building to dedicated Builder instances.

#Homelab Setup Overview

For this installation, I'm using multiple Proxmox LXC containers:

Komodo Core:

• Host: Proxmox VE LXC Container
• OS: Alpine Linux with Docker
• CPU: 1 vCPU
• RAM: 512 MB
• Storage: 8 GB

Komodo Builder:

• Host: Proxmox VE LXC Container
• OS: Alpine Linux with Docker
• CPU: 2 vCPU
• RAM: 2 GB
• Storage: 16 GB

Target Server (where containers will be deployed):

• Host: Proxmox VE LXC Container
• OS: Alpine Linux with Docker
• CPU: 4 vCPU
• RAM: 8 GB
• Storage: 64 GB

The Builder instance needs more resources since it will be compiling Docker images. The target server specifications will vary based on what you plan to run.

#Installation

We'll deploy Komodo in stages: first the Core, then the Periphery agents, and finally the Builder.

#Prerequisites

Before starting, ensure you have:

• Docker and Docker Compose installed on all hosts
• Network connectivity between all servers
• A Forgejo instance (from the previous article) or another Git provider
• A Docker registry (I'll use an instance I have locally in my homelab, but any provider will do)

#Deploying Komodo Core

Create a directory for your Komodo Core installation and download the official compose files:

mkdir -p ~/komodo
cd ~/komodo

# Download the official compose file and environment configuration
wget https://raw.githubusercontent.com/moghtech/komodo/main/compose/mongo.compose.yaml
wget https://raw.githubusercontent.com/moghtech/komodo/main/compose/compose.env

#Configuring the Environment

Open the compose.env file and configure the required variables:

nano compose.env

Update the following values:

## Required
KOMODO_HOST=http://your-komodo-ip:9120
KOMODO_TITLE=Homelab Komodo

## Secrets - generate with: openssl rand -base64 32
KOMODO_PASSKEY=your-secure-passkey
KOMODO_WEBHOOK_SECRET=your-secure-webhook-secret
KOMODO_JWT_SECRET=your-jwt-secret

## Auth
KOMODO_LOCAL_AUTH=true

## First Server - automatically registers local Periphery
KOMODO_FIRST_SERVER=homelab-core

Important: Generate secure values for the secrets:

# Generate random secrets
echo "KOMODO_PASSKEY: $(openssl rand -base64 32)"
echo "KOMODO_WEBHOOK_SECRET: $(openssl rand -base64 32)"
echo "KOMODO_JWT_SECRET: $(openssl rand -base64 32)"

Replace your-komodo-ip with the actual IP address or hostname of your Komodo Core server.

#Understanding the Configuration

The official compose file includes:

Core Service:

• Hosts the web interface on port 9120
• Connects to MongoDB for data persistence
• Mounts a repos directory for cloning Git repositories

MongoDB Service:

• Stores all Komodo configuration, deployment history, and state
• Data persists in a Docker volume

Periphery Service:

• Runs alongside Core to manage containers on the same host
• Mounts the Docker socket to control containers
• Shares the repos directory with Core

#Starting Komodo Core

Start the services using the downloaded compose file:

docker compose -f mongo.compose.yaml --env-file compose.env up -d

Verify everything is running:

docker compose -f mongo.compose.yaml --env-file compose.env ps

You should see all three containers running:

NAME                IMAGE                                    STATUS          PORTS
komodo-core         ghcr.io/moghtech/komodo-core:latest      Up 2 minutes    0.0.0.0:9120->9120/tcp
komodo-mongo        mongo:8                                  Up 2 minutes    27017/tcp
komodo-periphery    ghcr.io/moghtech/komodo-periphery:latest Up 2 minutes    8120/tcp

#Initial Configuration

Access the Komodo web interface at http://your-komodo-ip:9120.

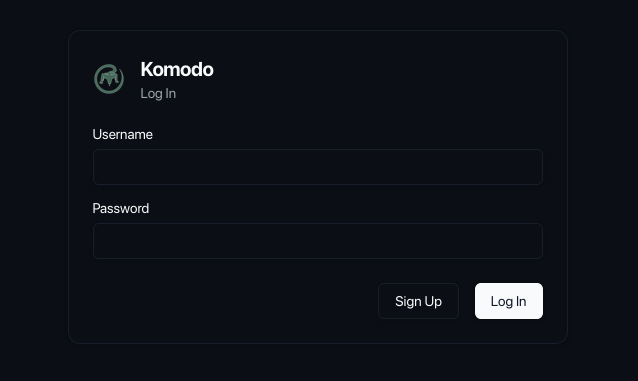

#First Login

1. On first access, you'll see the login page
2. Enter admin as username and changeme as password
3. Log in with those credentials

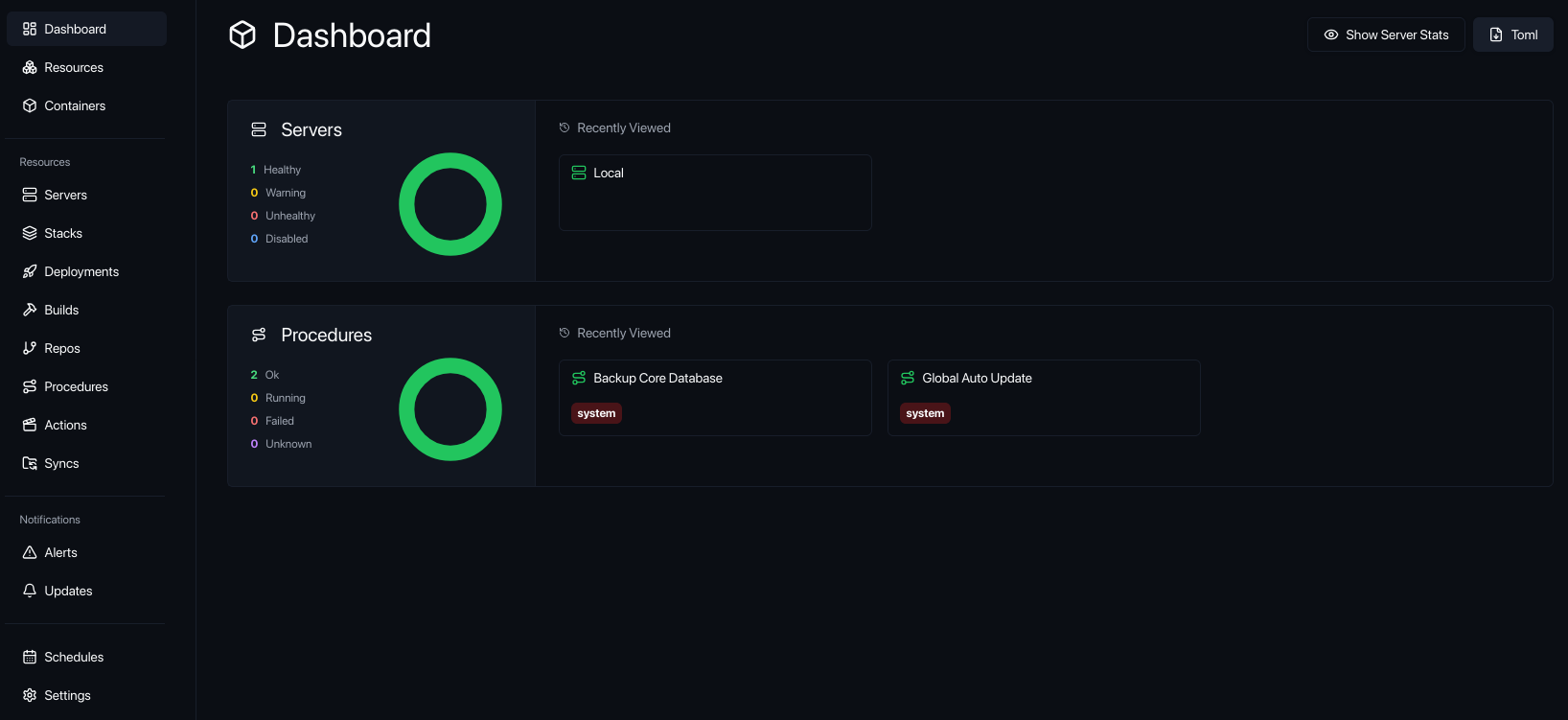

#Exploring the Dashboard

After logging in, you'll see the main dashboard with:

• Servers: List of connected Periphery agents
• Deployments: Container stacks managed by Komodo
• Builds: Docker image build configurations
• Repos: Connected Git repositories
• Procedures: Automated workflows
• Alerters: Notification configurations

The "homelab-core" server should already appear, registered automatically by the KOMODO_FIRST_SERVER environment variable.

#Adding Additional Servers

To manage containers on other servers, you need to deploy Periphery agents on them.

#Deploying Periphery on Target Servers

On each server you want to manage, create a Periphery deployment:

mkdir -p ~/komodo-periphery
cd ~/komodo-periphery

# Download the official compose file and environment configuration
wget https://raw.githubusercontent.com/moghtech/komodo/refs/heads/main/compose/periphery.compose.yaml

Important: Use the same PERIPHERY_PASSKEY as your Core installation, and uncomment ports in docker compose in order to allow core to reach periphery.

Start the Periphery:

docker compose -f periphery.compose.yaml up -d

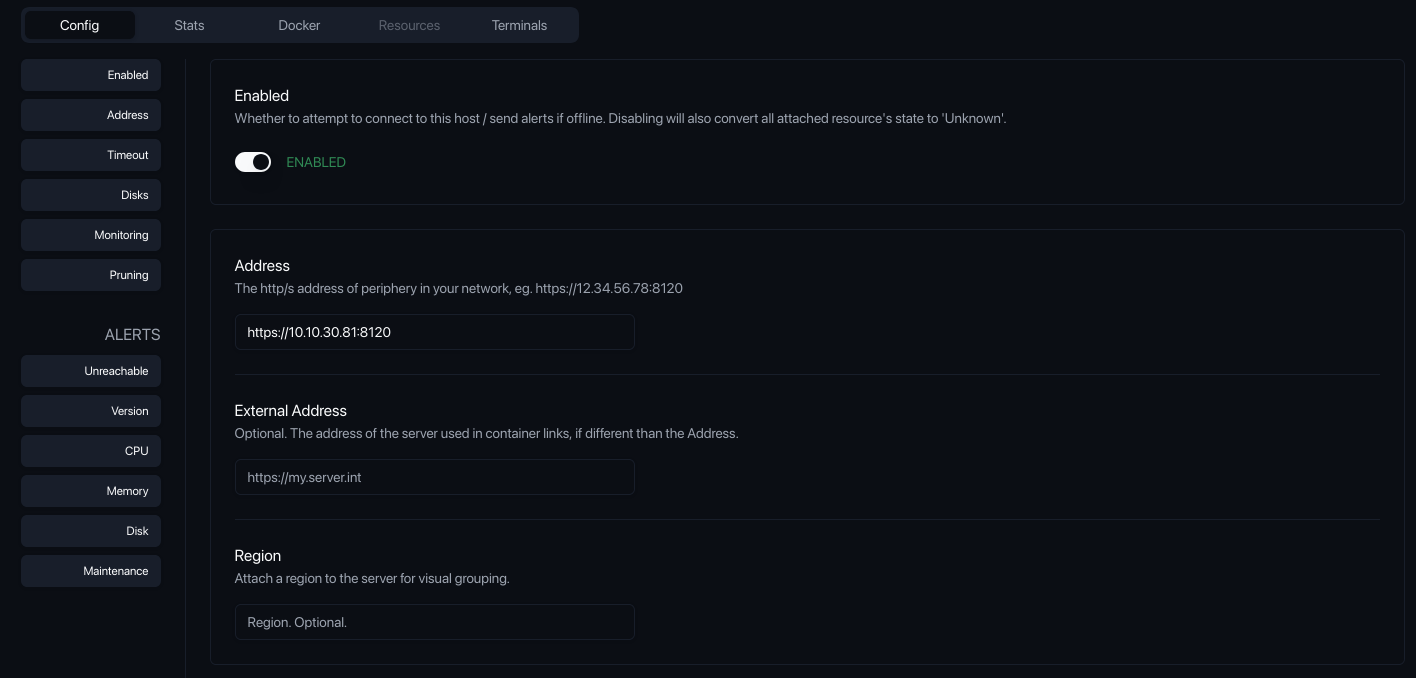

#Registering Servers in Komodo

1. In Komodo, navigate to Servers
2. Click the + button to add a new server
3. Enter the server details:
   • Name: A descriptive name (e.g., "homelab-main")
   • Enabled: True
   • Address: https://server-ip:8120
4. Click Save

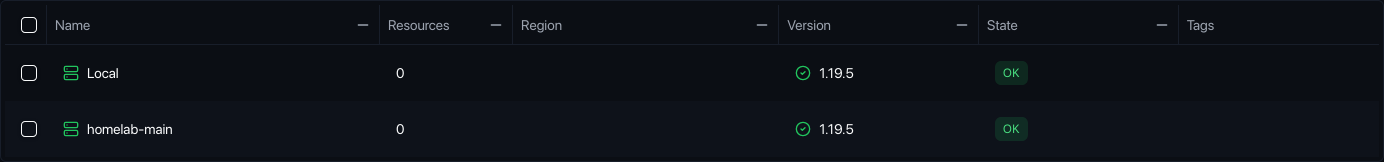

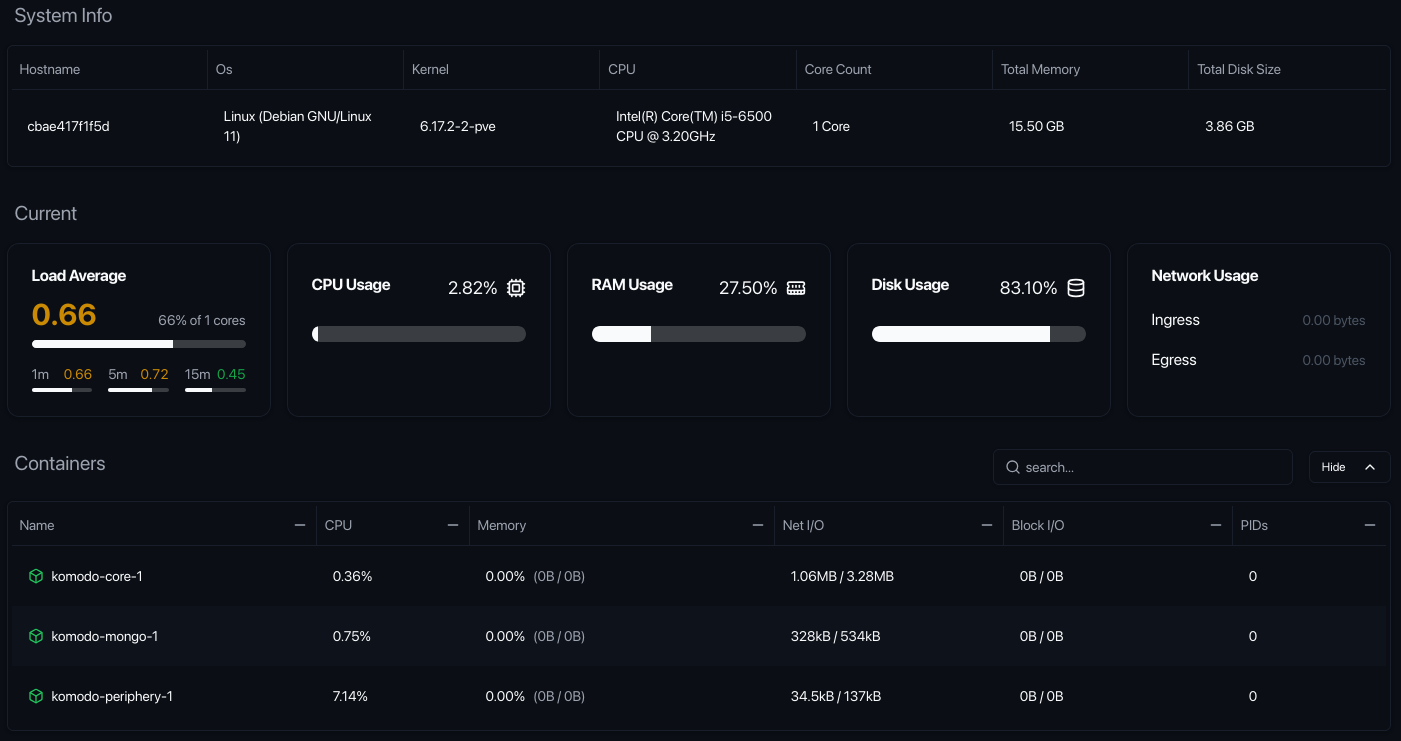

The server should connect and show as online with its container and resource information.

#Setting Up Komodo Builder

The Builder is a specialized Periphery instance optimized for building Docker images. Running builds on a dedicated instance keeps your production servers responsive.

#Deploying the Builder

On your Builder server, create the deployment (same as periphery):

mkdir -p ~/komodo-builder
cd ~/komodo-builder

# Download the official compose file and environment configuration
wget https://raw.githubusercontent.com/moghtech/komodo/refs/heads/main/compose/periphery.compose.yaml

Start the Builder:

docker compose -f periphery.compose.yaml up -d

#Registering the Builder

Add the Builder as a server in Komodo:

1. Navigate to Servers
2. Click + to add a new server
3. Enter:
   • Name: "homelab-builder"
   • Enabled: True
   • Address: http://builder-ip:8120
4. Click Save

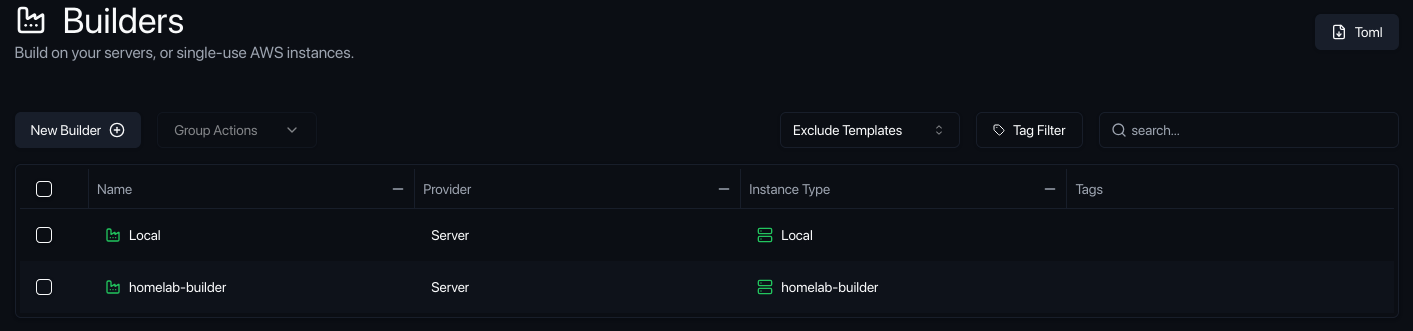

After that go into Settings -> Builders tab

1. Click New Builder
2. Enter:
   • Name: "homelab-builder"
   • Type: "Server"
   • Click Create
3. In the new opened page select the server created before: "homelab-builder"
4. Click Save

#Connecting to Forgejo

Now let's integrate Komodo with the Forgejo instance from the previous article. This allows Komodo to pull stacks from your Git repositories and trigger deployments on push.

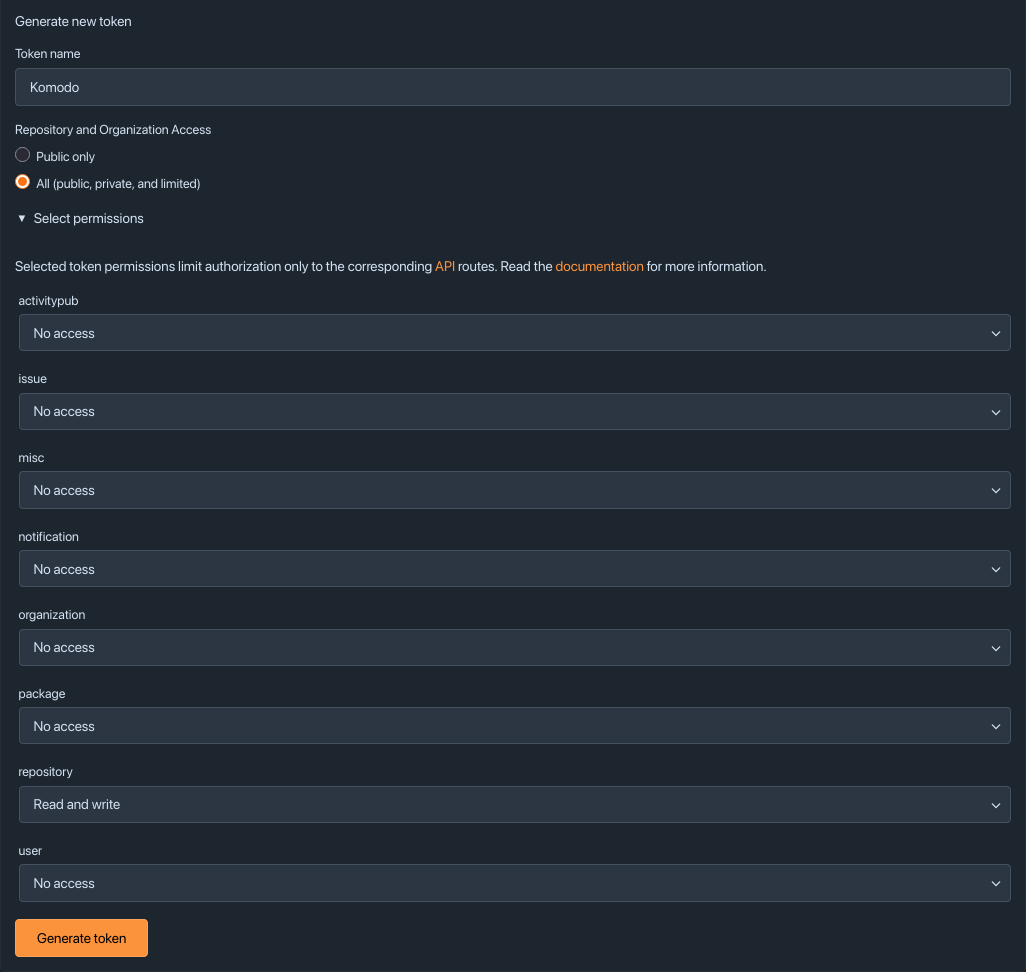

#Creating a Forgejo Access Token

In Forgejo:

1. Navigate to Settings → Applications
2. Under Generate New Token, enter:
   • Token Name: "Komodo"
   • Repository Access: Preferred (we will use All)
   • Permissions: Select repository (Read and Write)
3. Click Generate Token
4. Copy the generated token immediately (you won't see it again)

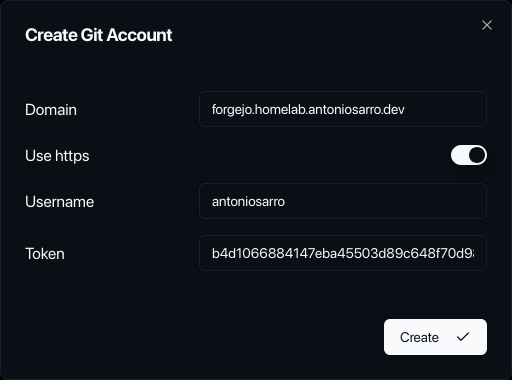

#Adding Git Provider in Komodo

1. In Komodo, navigate to Settings → Git Providers
2. Under Git Accounts click New Account
3. Configure:
   • Domain: your-forgejo-ip:3000
   • HTTPS: Disable if not using SSL
   • Username: Account that has generated token
   • Token: Paste your Forgejo access token
4. Click Create

#Setting Up the Homelab Stacks Repository

In Forgejo, create a repository called homelab to store all your Docker Compose configurations:

Each stack is a directory containing a compose.yaml file and any related configurations.

Example stack structure for Uptime Kuma:

services:
  uptime-kuma:
    image: louislam/uptime-kuma:1
    container_name: uptime-kuma
    restart: unless-stopped
    ports:
      - 3001:3001
    volumes:
      - ./data:/app/data

#Creating Your First Stack Deployment

With everything connected, let's deploy a stack from your Forgejo repository.

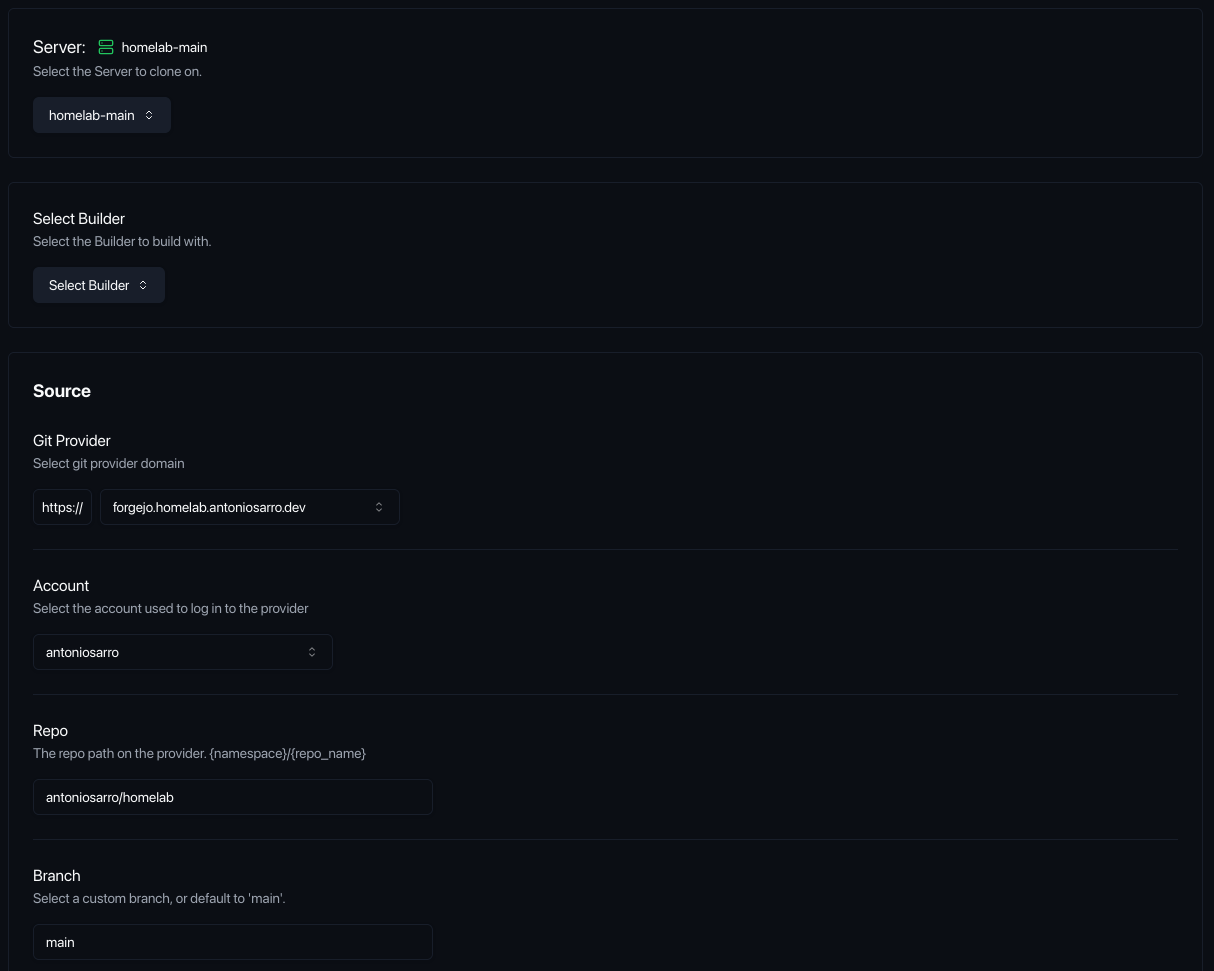

#Syncing the Repository

1. Navigate to Repos in Komodo
2. Click + to add a repository
3. Configure:
   • Name: "homelab-stacks"
   • Server: "homelab-main"
   • Source: Select your Forgejo provider
   • Account: The one created
   • Repo: Select or enter your-username/homelab-stacks
   • Branch: main
4. Click Save
5. Click Clone

Komodo will clone the repository. You can view the sync status and trigger manual syncs from the repository page.

#Creating a Stack Deployment

1. Navigate to Stacks
2. Click + to create a new stack
3. Configure:
   • Name: "uptime-kuma"
   • Server: Select your target server (e.g., "homelab-main")
   • Choose Mode: Select "Git Repo"
   • Repo: Select "homelab-stacks"
   • Files: uptime-kuma (the directory within the repo)
4. Click Save

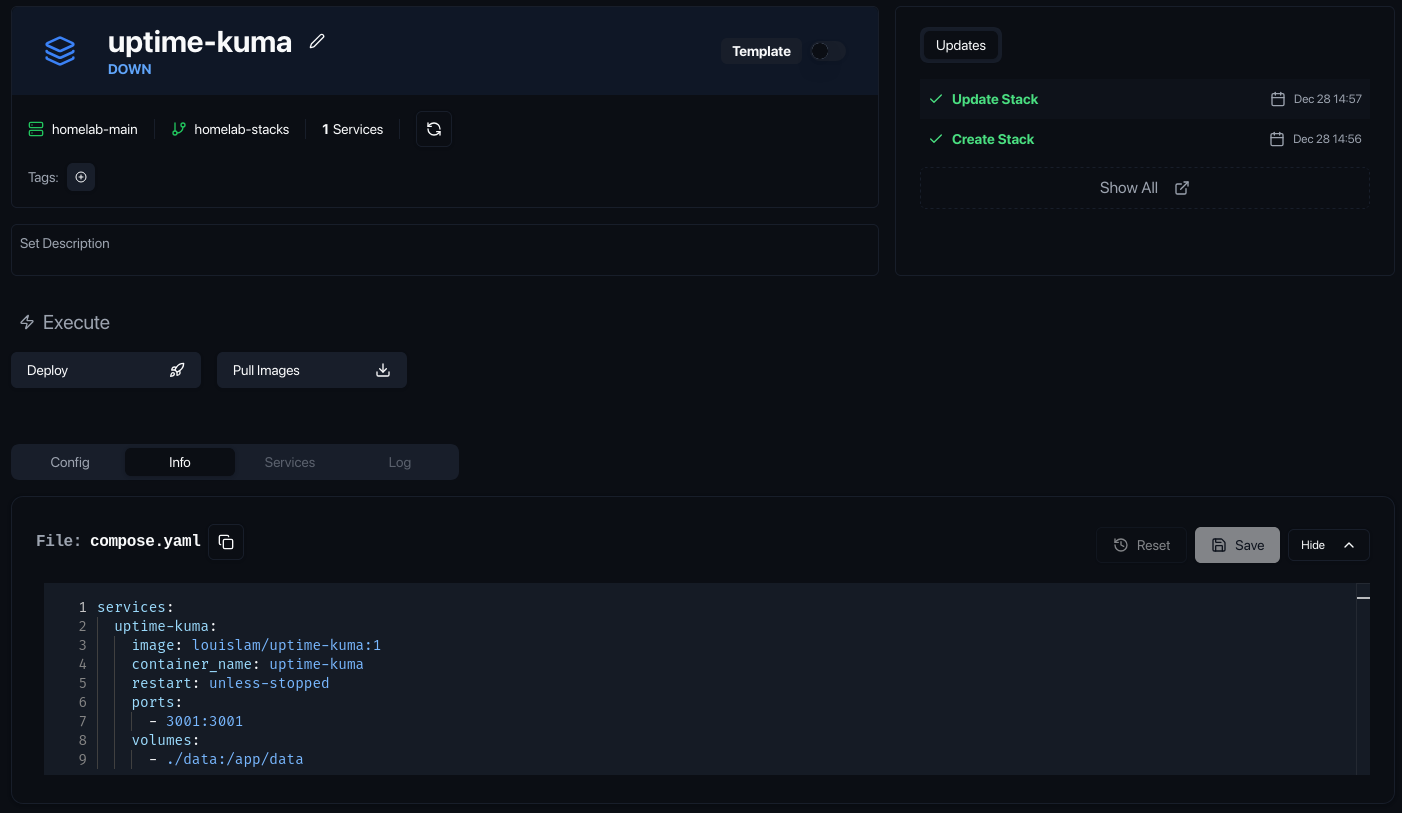

If all goes well you will see into the Info tab, the content of the compose.yaml

#Deploying the Stack

1. On the stack page, review the compose file preview
2. Click Deploy
3. Komodo will pull the images and start the containers
4. Monitor the deployment logs in real-time

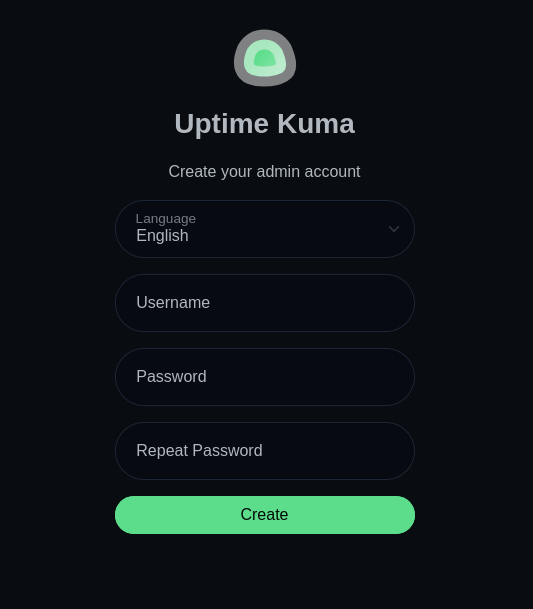

Now if all goes in the right way, if you visit the address of :3001, you will see the uptime kuma create profile page.

Once complete, you can see the running containers under the server's container list or in the stack's detail page.

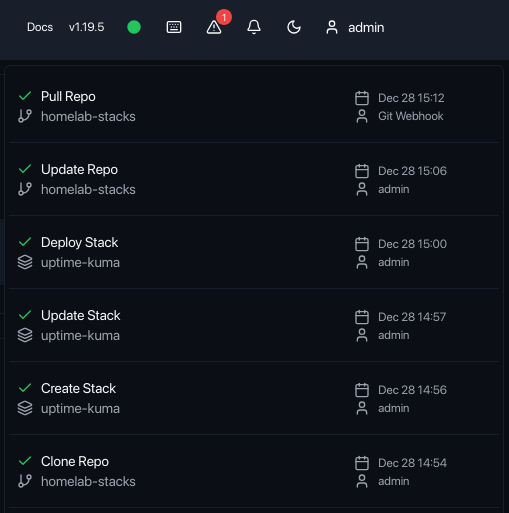

#Setting Up Webhooks for Auto-Deployment

To automatically deploy when you push changes to your stacks repository, configure webhooks.

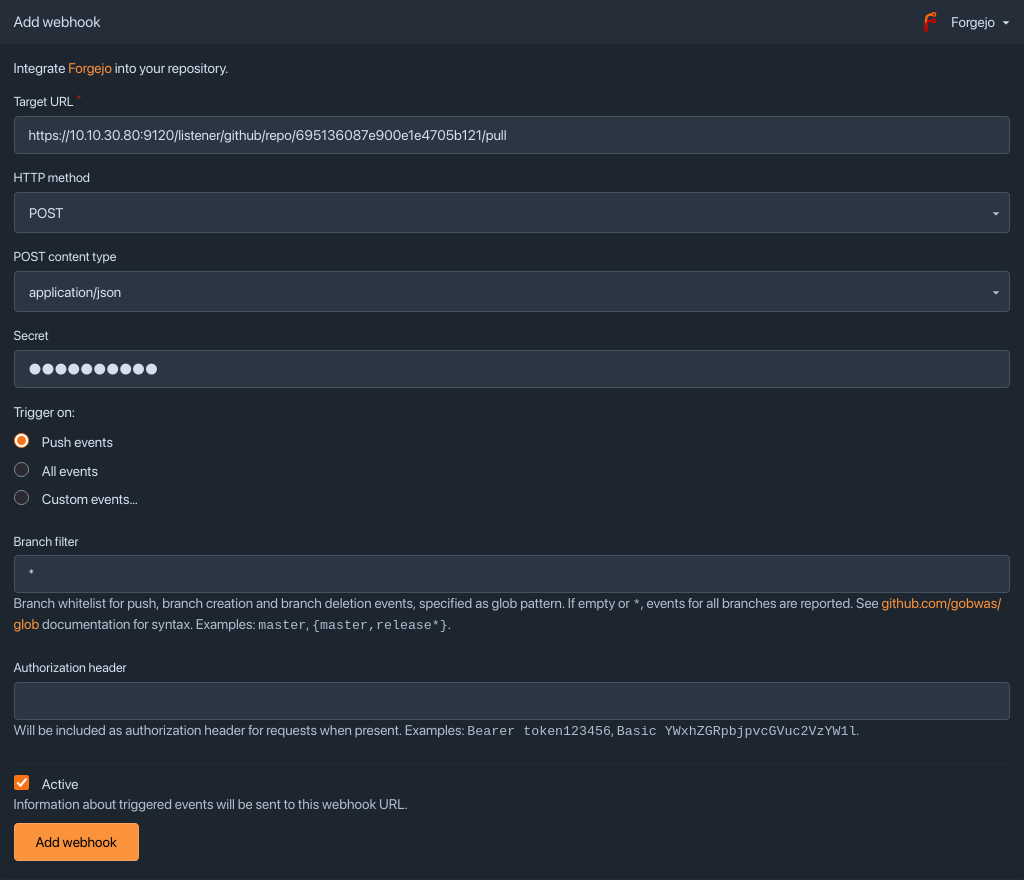

#Creating a Webhook in Forgejo

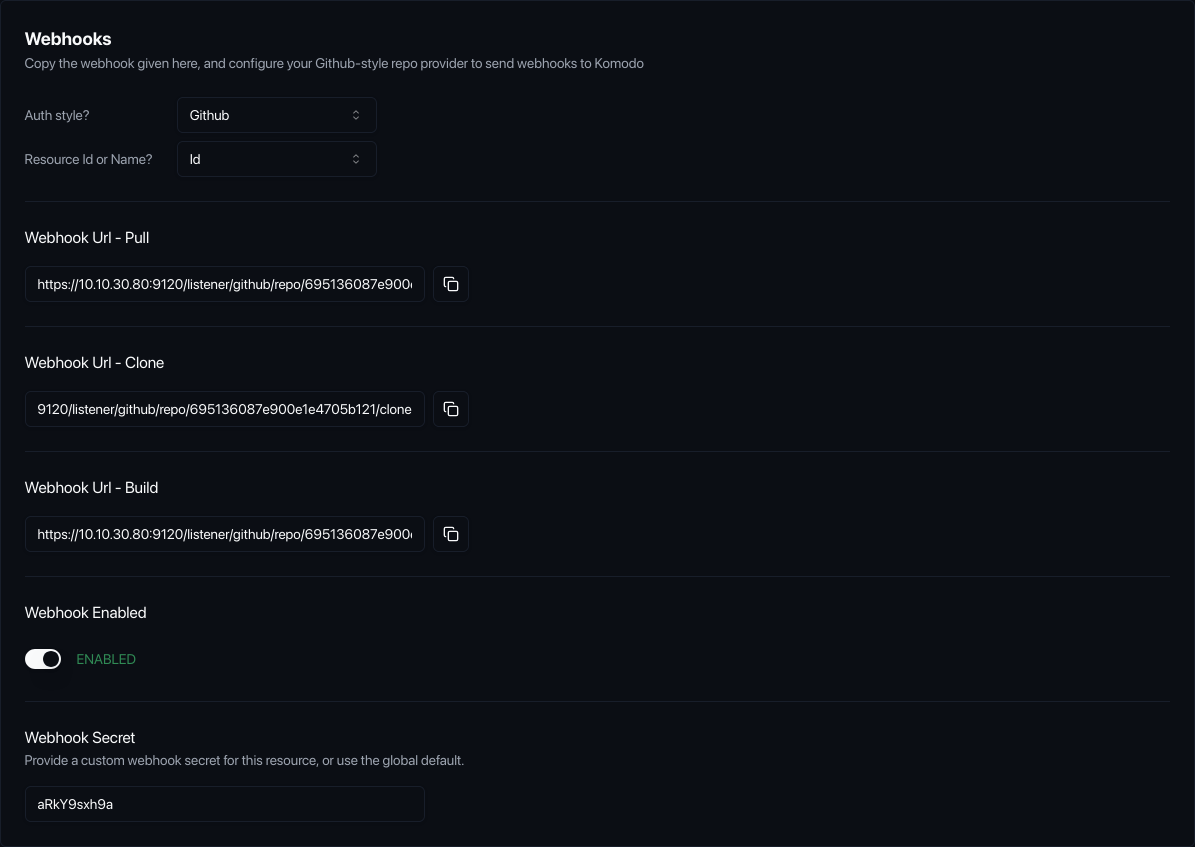

Komodo repo webhook settings

1. In Forgejo, navigate to your homelab-stacks repository
2. Go to Settings → Webhooks
3. Click Add Webhook → Forgejo
4. Configure:
   • Target URL for pull (you can get this on Komodo inside the repo config): https://10.10.30.80:9120/listener/github/repo/695136087e900e1e4705b121/pull
   • HTTP Method: POST
   • Secret: Your KOMODO_WEBHOOK_SECRET value
   • Trigger On: Push Events
5. Click Add Webhook

If you get an https error, just change into the target url https to http. Now if you test the webhook or do a push on the repository you will receive on komodo a notification like this, that tell you komodo did a pull repo via git webhook:

#Building Custom Images

One of Komodo's powerful features is building Docker images from your repositories. This integrates perfectly with Forgejo.

#Creating a Build Configuration

1. Navigate to Builds in Komodo
2. Click + to create a new build
3. Configure:
   • Name: "my-app"
   • Builder Server: Select "homelab-builder"
   • Source: Select your Git provider and repository
   • Dockerfile Path: Dockerfile (or custom path)
   • Build Context: . (repository root)

#Configuring Image Registry

To push built images to Forgejo's container registry:

1. In the build configuration, scroll to Image Registry
2. Configure:
   • Registry: your-forgejo-ip:3000
   • Image Name: your-username/my-app
   • Account: Your Forgejo username
   • Token: Your Forgejo access token

#Running a Build

1. Click Build on the build page
2. Watch the build logs in real-time
3. Once complete, the image will be pushed to your Forgejo registry

#Using Built Images in Stacks

Reference your custom images in stack compose files:

services:
  my-app:
    image: your-forgejo-ip:3000/your-username/my-app:latest
    container_name: my-app
    restart: unless-stopped
    ports:
      - 8080:8080

#Creating Procedures for Automation

Procedures in Komodo allow you to chain multiple actions together, perfect for CI/CD workflows.

#Example: Build and Deploy Pipeline

1. Navigate to Procedures
2. Click + to create a new procedure
3. Configure:
   • Name: "deploy-my-app"
   • Steps:
     1. Build: Select your "my-app" build
     2. Deploy: Select your "my-app" stack

This procedure will build a fresh image and then deploy it, ensuring your stack always runs the latest code.

#Triggering Procedures via Webhook

You can trigger procedures from Forgejo pushes:

1. Copy the procedure's webhook URL from its settings
2. Add a new webhook in Forgejo pointing to this URL
3. Now pushes to your app repository will trigger the full build and deploy pipeline

#Monitoring and Alerting

Komodo provides built-in monitoring for all your managed resources.

#Resource Monitoring

Each server page displays real-time and historical data for:

• CPU usage
• Memory usage
• Disk usage
• Network I/O
• Container status

#Setting Up Alerts

1. Navigate to Alerters

2. Click + to create an alerter

3. Configure your notification method:

   • Discord: Webhook URL
   • Slack: Webhook URL
   • Custom: HTTP endpoint for custom integrations

4. Configure what triggers alerts:

   • Server offline
   • Container crashed
   • Build failed
   • Deployment failed

#Troubleshooting

#Common Issues

Periphery not connecting to Core:

• Verify the passkey matches exactly between Core and Periphery
• Check network connectivity: curl http://core-ip:9120
• Review Periphery logs: docker compose logs periphery

Builds failing:

• Check Builder has sufficient resources (disk space, memory)
• Verify Docker socket is properly mounted
• Check Builder logs for specific errors

Stacks not deploying:

• Ensure the target server's Periphery is connected
• Verify the compose file is valid YAML
• Check server disk space and available resources

Repository sync failing:

• Verify Git provider token is valid
• Check the repository URL and permissions
• Review Core logs for authentication errors

Webhooks not triggering:

• Verify webhook secret matches KOMODO_WEBHOOK_SECRET
• Check Forgejo's webhook delivery logs for errors
• Ensure Komodo Core is accessible from Forgejo

#Conclusion

You now have a complete container management and CI/CD platform running in your homelab. With Komodo integrated with Forgejo, you have:

• Centralized management of all your Docker containers
• Automated deployments triggered by Git pushes
• Custom image building with dedicated Builder instances
• Real-time monitoring and alerting
• Version-controlled infrastructure with your homelab-stacks repository

This setup gives you the power of enterprise DevOps tools while keeping everything self-hosted and under your control. The combination of Forgejo for code hosting and Komodo for deployment creates a seamless workflow from commit to running container.

Happy deploying!
